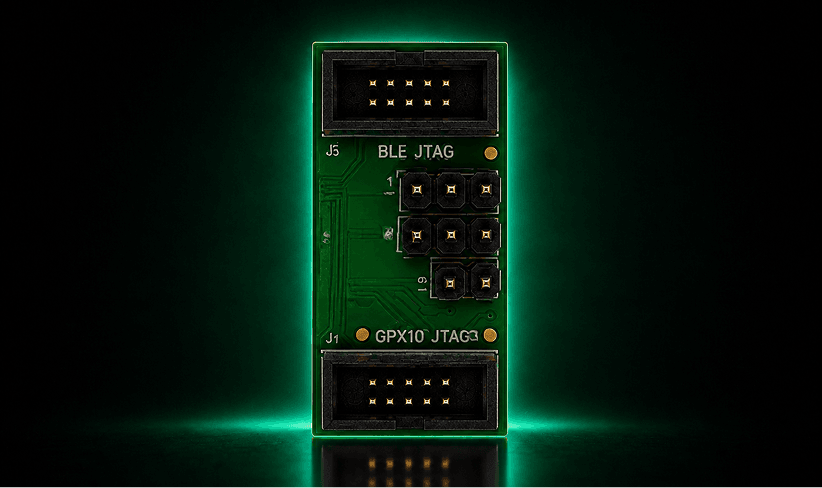

The Lab
USB-C for power/charging, 10-pin JTAG, programmable LEDs, and headers for easy signal probing and power analysis.
Flash live demos straight from your phone.
Pair NuraSense with the ApplicationForge app over Bluetooth, push any demo to the board, and watch results live — no laptop, no code.
Pair over BLE
Connect the app to your eval board in a tap.
Flash a demo instantly
Push VAD, gesture recognition, fall detection, and more to the board.
See it live
Watch AI inference results stream to your phone in real time.
Coming soon
on Android
on Android
Coming soon
on iOS
on iOS
Evaluate GPX10 Pro in minutes on NuraSense

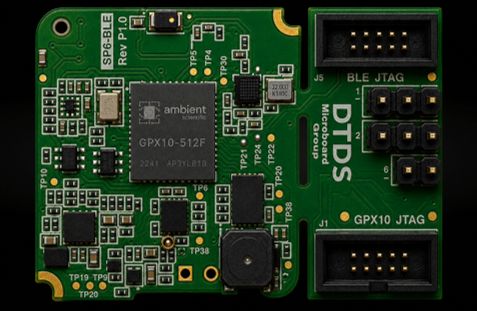

The NuraSense Evaluation Kit puts a real GPX10 Pro, onboard sensors, and a microphone in your hands with a snap-off breakout for probing and power analysis. Validate real AI on real silicon out of the box, then carry the exact same software straight to production.
The complete Edge AI stack in a single kit
Everything you need to evaluate GPX10 Pro sensors, microphone, wireless, and debug pre-integrated and ready to run.
Form factor:
Compact core board with a detachable breakout for probing and debug.
Power
Runs from a 3.7V rechargeable battery (onboard charging), or a bench supply (1.8V to VDDH / 1.0V to VDDC via the J2 header).
Sensors
6-axis IMU (accelerometer, gyroscope, temperature) and an onboard digital microphone; up to 4 analog mics via the Sensor ADC, plus I²S digital audio.
Comms & I/O
Onboard BLE (Nordic nRF52811), plus SPI, I²C, I²S, UART, and GPIO.
Memory
64 Mbit NOR flash for boot, application, and AI-model storage.
Debug
USB, 10-pin JTAG (J-Link), UART debug, programmable LEDs, and signal/power probing headers on the breakout.
Full debug now. Compact core when you need it.

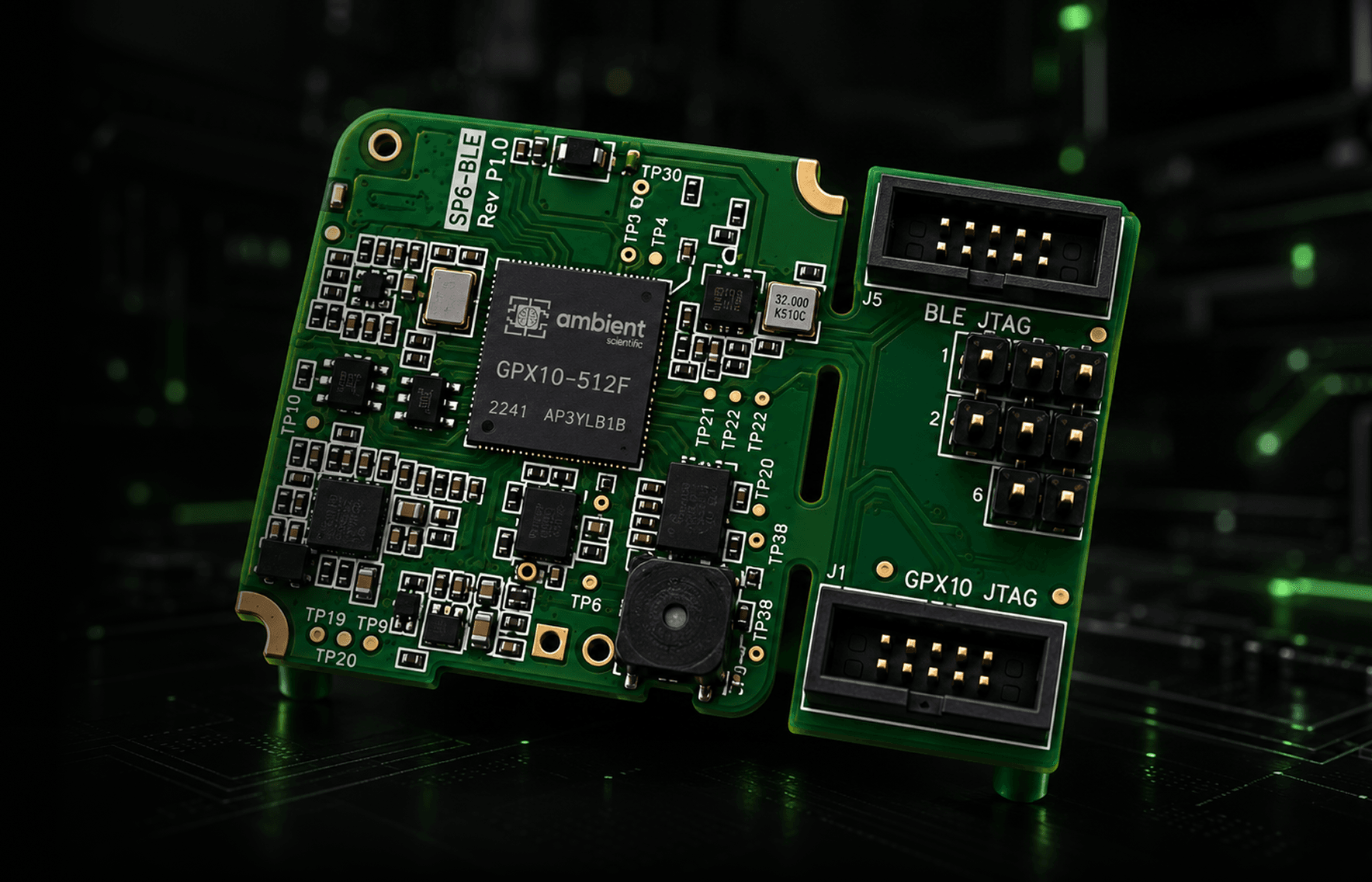

NuraSense is built in two halves. Prototype with the full breakout, then snap it off to work with just the tiny core in real form-factor mockups.

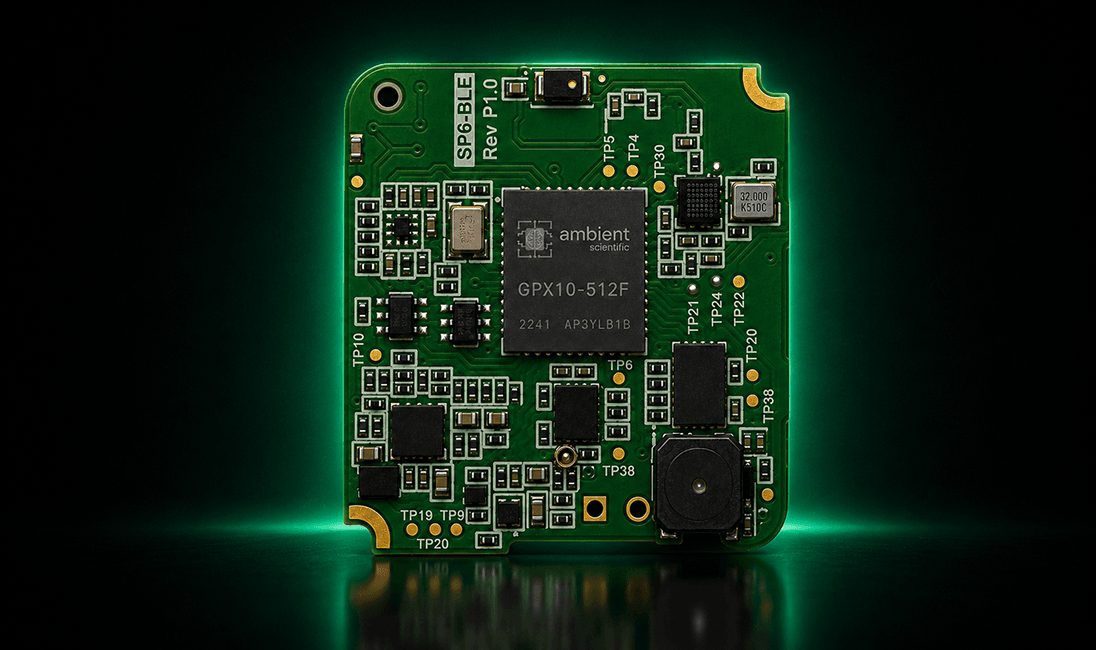

The Core
Snap off the breakout to test the compact core in your prototype and validate fit and placement.
When you're ready for volume, the software you validate here ports 1:1 to the GPX10 Pro SOMs.
Explore SOMsDemo Ready
Pre-loaded demos. Instant AI validation.
A curated set of AI models you can push to the NuraSense kit and see working in seconds
Voice-Based
Keyword Spotting
Utilize the onboard I2S and analog microphones to instantly test offline wake-word detection and voice commands in physically noisy environments.
IMU-Based
Fall Detection
Leverage the integrated 3-axis digital accelerometer to run continuous, microwatt-level motion analysis and instant fall detection natively on the device.
Vision-Based
Gesture Recognition
Route a camera feed through the dedicated connector to validate real-time spatial awareness and gesture recognition without relying on a cloud round-trip.
Flash demos from your phone.
Pair the Cranium kit with the ApplicationForge app over Bluetooth, push any demo to the board, and watch results live — including the gesture-controlled game.
Flash live demos straight from your phone.
Pair NuraSense with the ApplicationForge app over Bluetooth, push any demo to the board, and watch results live — no laptop, no code.
Pair over BLE
Connect the app to your eval board in a tap.
Flash a demo instantly
Push VAD, gesture recognition, fall detection, and more to the board.
See it live
Watch AI inference results stream to your phone in real time.
Coming soon
on Android
on Android
Coming soon
on iOS
on iOS
Build Your Own
Have your own model? Meet ModelForge.
ApplicationForge flashes the ready-made demos with zero code. When you want to run your own model — or need deeper, full-toolchain control — ModelForge takes a standard TensorFlow model to on-silicon inference in 15 minutes.
Your Model
Automated TFLite conversion & quantization
RTOS
DSP
Drivers
Build
Nurasense Evaluation Kit
15 minutes to on-silicon execution
ModelForge SDK
Pre-integrated RTOS & Eclipse-based Unified Build
RTOS
DRIVERS
COMPILER
Validate on NuraSense. Ship on our SOMs.
The exact C-code, hardware configurations, and unified build you validate on the Cranium DVK ports directly to our production-ready System-on-Modules (SOMs).

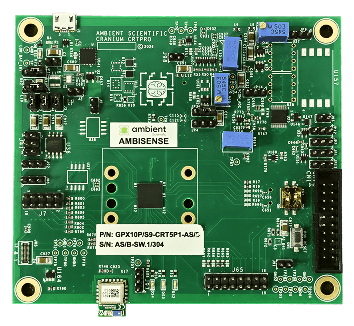

Cranium DVK
Legacy Board
Validate your logic on the Cranium kit today with full debug capabilities and rich I/O.
NuraSense
Development
Drop our high-density SOM directly into your product without rewriting your application software.
Validate your logic on the Cranium kit today. When you are ready for extreme space constraints, drop our high-density SOM directly into your product without rewriting your application software.
